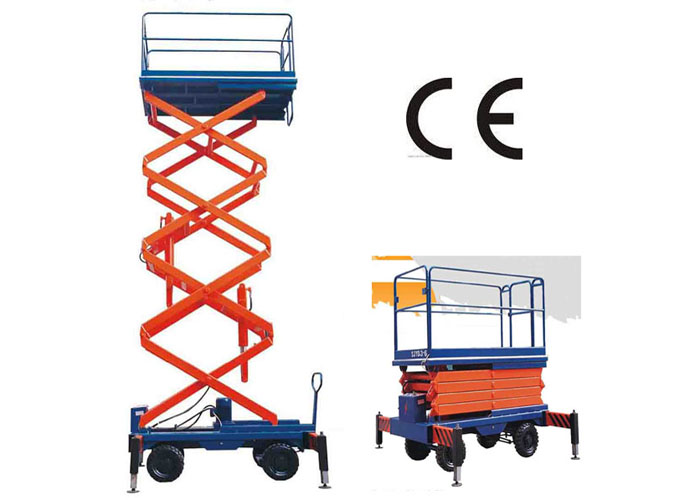

CE Approved 11M Electric Portable Hydraulic Boom Lift , Man Lift For Aerial Work
Description:
Small electric hydraulic mobile scissor lift China is the professional high-altitude operation equipment and and widely used for the installations and maintenance, at places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline.
Features:
A.Made of high intensity manganese steel tubes, never deformed.
B.Antiskid upper platform plate and 1000mm height guardrail to guarantee opertor's safety.
C.Anti explosion valve to prevent upper platform from dropping suddenly when any emergency.You can open the emergency decline valve to lower the platform to the home position.
D.Spillover valve: It can prevent high pressure when the machine moves up to adjust work pressure.
E.Special made casting steel hinge ear, well wearable , with a long serve life.
Hydraulic scissor lift platform advantage:
Lifting mechanism were made with high strength manganese steel major form.
To prevent lifting platform overload safety device.
Have a safety protection valve to prevent hydraulic pipeline rupture.
Outage case emergency drop device.
Lifting platform power matching
Ac 380 v power supply (general configuration)
Ac 220 v power supply
Dc power DC24V
Manual hydraulic pump power manual/electric dual power
Ac and dc dual power.
Specifications:
| Model | Unit | KDSJY0.3-11 |
| Rated capacity | kg | 300 |
| Plate height(max) | mm | 11000 |
| Plate height (min) | mm | 1560 |
| Plate size(l*w) | mm | 2100*1140 |
| Working voltage | v | AC380,AC220,or AC110 |
| Working voltage | v | DC24,or AC_DC24 |
| Motor power | 380v | 1.5kw |
| Motor power | 220v | 2.2kw |
| Overall length | mm | 2280 |
| Overall width | mm | 1340 |
| Overall height | mm | 2596 |
| Met weight | kg | 1380 |
