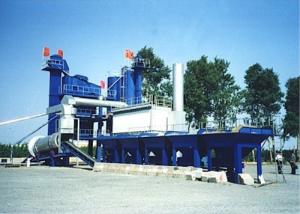

255 KW Full Automatic asphalt mixer plant With 3000kgs Mixer Capacity
80~90 tons / Hour Capacity Mobile Asphalt Batching Plant GLB-1000 With 1000kgs Mixer Capacity
80~90 TPH Stationary Asphalt Batching Plant GLB-1000 With 30 m3 Hot Agg Bin Burner
- Model and technical data:
Plant type: GLB-1000
- Capacity:80~90t/h
- Fuel consumption: 6.5kg / metric tonne (product)
- Weigh accuracy: 0.3% for asphalt, 0.5% for filler, 0.5% for aggregates
- Emission≤20mg/Nm3(Using the Bag filter)
- Total power: 255KW
- Structure: modular
- Ambient temperature: 5ºC~+50ºC
- Standard: GB/T17808-199
Capacity: 8m3/each
Quantity: 4 sets
Width of each bin: 3,500mm
Height of each bin: 2,850mm
Capacity: 50t/h each
Quantity: 4 sets
Variable-speed geared motor
- Horizontal collecting belt
- Dryer and burner(Tietuo Brand)
Dimension: φ1,750mm(D)×7,000mm(L)
Driven by friction-driven variable speed motor: 4x7.5kW
Optimized flight structure with replacement design.
Rock wool isolated, stainless steel covered.
Temperature sensor with thermocouple, wear proof
Burner: Low-pressure,Bubble automization,
light/heavy oil, 800 kg/h.
Air compressor:2m3/min, 0.6 m3 air tank
Capacity: 100 t/h
Motor: 18.5 kW
Bucket chain elevator
- Vibrating screen and Hot hopper
Linear vibration, 4 kinds of aggregates, 4 deck
Imported motor, electro-vibrator,
Motor: 3.2kW×2
Sealed, dust proof., negative-pressure
Spec of screen mesh: 4×4, 10×10, 18×18,25×25
We can also supply special mesh size according to customer demands.
5. Hot hopper:
4 aggregate hoppers and 1 waste bin and 1 recovery filler temporary bin
Effective capacity of aggregate bin is 10 m3
Level indicator (Upper) and for overflow bin
Thermostat in sand hopper
Sampling door
Negative pressured structure (dust proof) and connections
6. Weighing system and Mixer
Aggregate Weighing:
3 Toledo load cells, adjustable double door
Filler Weighing:
3 Toledo load cells, butterfly valve.
Bitumen weighing:
3 Toledo load cells
Direct input from load cell to PLC, high accuracy
7. Mixer:
Type: Twin-shaft type, central lubricating device.
Motor: 18.5kW×2
Capacity: 80t / h, 1000kg/batch
Mixing period: 45 seconds.
Life for paddle and liner: 100,000 batches
Specifications:
| GLB Series(bottom type finished storage silo) |
| Type |
Production |
Hot Agg Bin |
Capacity |
Finished Storage Bin |
Weighing Accuracy |
| GLB-600 |
48 t/h |
7 m3 |
600 kg |
30 t |
Aggregate:±0.5%
Filler :±0.25%
Bitumen :±0.25%
|
| GLB-800 |
64 t/h |
7 m3 |
800 kg |
30 t |
| GLB-1000 |
80 t/h |
10 m3 |
1000 kg |
50 t |
| GLB-1200 |
96 t/h |
10 m3 |
1200 kg |
50 t |
| GLB-1500 |
120 t/h |
30 m3 |
1500 kg |
50 t |
| GLB-2000 |
160 t/h |
50 m3 |
2000 kg |
100 t/200 t |
| GLB-2500 |
200 t/h |
50 m3 |
2500 kg |
100 t/200 t |
| GLB-3000 |
240 t/h |
50 m3 |
3000 kg |
100 t/200 t |
| GLB-4000 |
320 t/h |
75 m3 |
4000 kg |
100 t/200 t/300 t |
