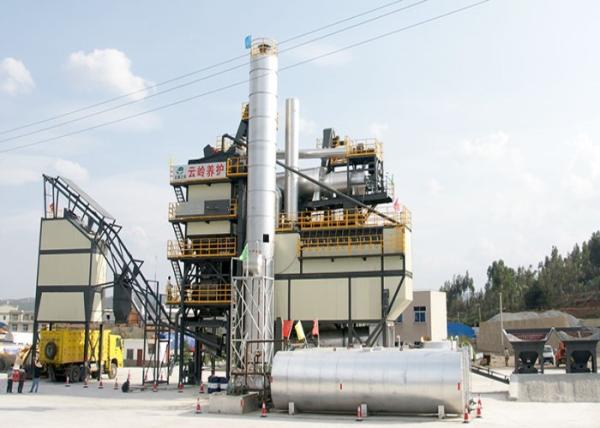

96 T / H Electric Asphalt Mixing Plant , Road batch mixing plant GLB -1200

Product Categories
Wuhan Visbull Machinery Co., Ltd.
Contact Now

96 T / H Electric Asphalt Mixing Plant , Road batch mixing plant GLB -1200

  • 1
  • 2

Brand Name : KUDAT

Model Number : GLB-1200

Certification : CE/SGS/ISO9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 500set per month

Delivery Time : 25-30working days after received your payment

Packaging Details : Nude packing in container.

Capacity : 96TPH

Mixer Capacity : 1200kgs

Hot Agg Bin : 10 m3

Finished Storage Bin : 30tons

Fuel consumption : 6.5kg/t

Working Cycle Period : 45 Second

Contact Now

96 T / H Electric Asphalt Mixing Plant , Road batch mixing plant GLB -1200

Feature:

  • The mixer uses the high strength wearable material which increases the service life;
  • Total dust collection with 1st-level inertial collecting,2nd-level wet collecting and negative pressure design for complete tower modules, not only practical and economic, but to reduce initial cost for the customer;
  • The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant;
  • Tte hot elevator adopts the double Gall's chain for hoisting, which not only prolongs the service life of the hoisting machine but also improves the running stability;
  • The optimized flights structure of drying drum makes the drying system more effective and stable;
  • Overall modular design makes the transportation and installation more convenient and fast;
  • The computer-controlled system, auto/manual switchable, and auto self-diagnosis program makes the operation easy and safe;
Type LB-600 LB-800 LB-1000 LB-1200
Capacity 48T/h 64T/h 80T/h 96T/h
Power 205kW 201kW 220kW 255kW
Mixer Capacity 600KG 800KG 1000KG 1200KG
Fuel oil consumption 6.5KG/T
Weighing Accuracy AGGREGATE:±0.5% Filler:±0.5% BITUMEN:±0.25%

Item Description Unit
Main parts 1 Four-bin Cold Feed (4×10 m3) 1set
2 Burner 1unit
3 Dryer and drive system (ф1750×7000㎜) 1unit

4

 Hot Bucket elevator 1unit

5

 Filler elevator 1unit

6

 Vibrating screen 1set

7

 Hot hopper(Capacity:10m3) 1set

8

 Weighing system 1set

9

 Pneumatic system 1set
10 Filler supply system 1set

11

 Mixer(22kW×2) 1unit

12

 Vent 1unit

13

 Cyclone dust filter(level one) 1set

14

 Washery dust filter (level two) 1set

15

 Blower 1set
Control System

16

 PLC 1set

17

 Control panel 1set

18

 Touch screen 1unit

19

 Printer 1unit
20 Control room 1unit
